This ETWF05IL model is type h panel mount socket that is the power outlet module, compliant with the Israeli standard (Type H), is specifically designed for panel mounting applications. Typically integrated into wall plates, desktop power hubs, multimedia interface panels, or industrial equipment consoles, it serves to provide a safe and stable power connection for electrical devices.
Utilizing an embedded or panel-fixed mounting method, the module can be securely installed within pre-cut openings using screws or snap-fit mechanisms, facilitating seamless integration into various power management systems and custom panel solutions. The Type H socket is compatible with Israeli-standard plugs and features excellent conductivity as well as robust safety protection mechanisms.
This product is widely utilized in residential settings, office spaces, hotels, commercial venues, and industrial equipment-making it particularly suitable for projects or export products that require Israeli-standard power interfaces.

Specifications: (ETWF05IL)

Model	ETWF05IL
Product Name	type h panel mount socket
Panel Material	Tempered glass + PC
Input Voltage Range	AC100-240V 50-60HZ
Color	Black/White/Gold/Grey/Customized colors
Configuration	Double Israeli power outlet

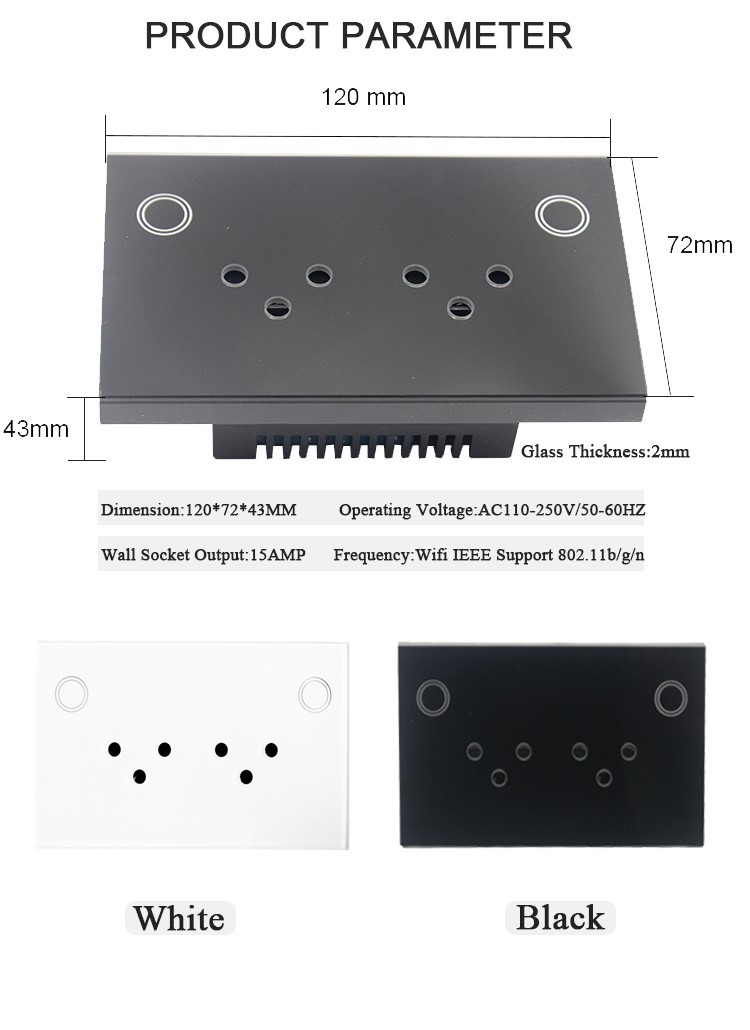

Panel Size	120mm(L)x72mm(W)x43mm(H)
Glass thickness	2-4mm
Max Current	15A
Version	WIFI/Zigbee
Customized	CE, ROHS
Warranty	12 months
Wireless type	2.4G 802.11b/g/n
Operation system	Tuya app
Package included	1x wall socket, 1x user manual
Application	Residential / home/hotel

Type h panel mount socket Packing & Delivery

1.Packed in plywood crates or cardboard boxes, it can be shipped by air or sea.

2. Special markings can be affixed upon customer request.

Key Features

Israel Standard Compatible (Type H)

Designed specifically for Type H plugs, suitable for use in Israel and markets adhering to related standards, ensuring a stable and reliable power connection.

Intelligent Remote Control

Supports remote control of the switch via a mobile app (such as Tuya or Smart Life), enabling you to manage power devices anytime, anywhere.

Voice Control Function

Compatible with mainstream voice platforms (such as Amazon Alexa and Google Assistant), enabling voice-activated on/off control to enhance the smart home experience.

Power Monitoring Function

Monitors voltage, current, power, and energy consumption in real time, helping users optimize energy usage and implement energy-saving management.

Scheduling and Scene Linkage

Supports scheduled on/off switching, countdown timers, and smart scene settings (e.g., "Home" and "Away" modes) to enable automated control.

Overload and Safety Protection

Features built-in overload, short-circuit, and over-temperature protection functions, and is equipped with a child-safe shutter design for enhanced peace of mind.

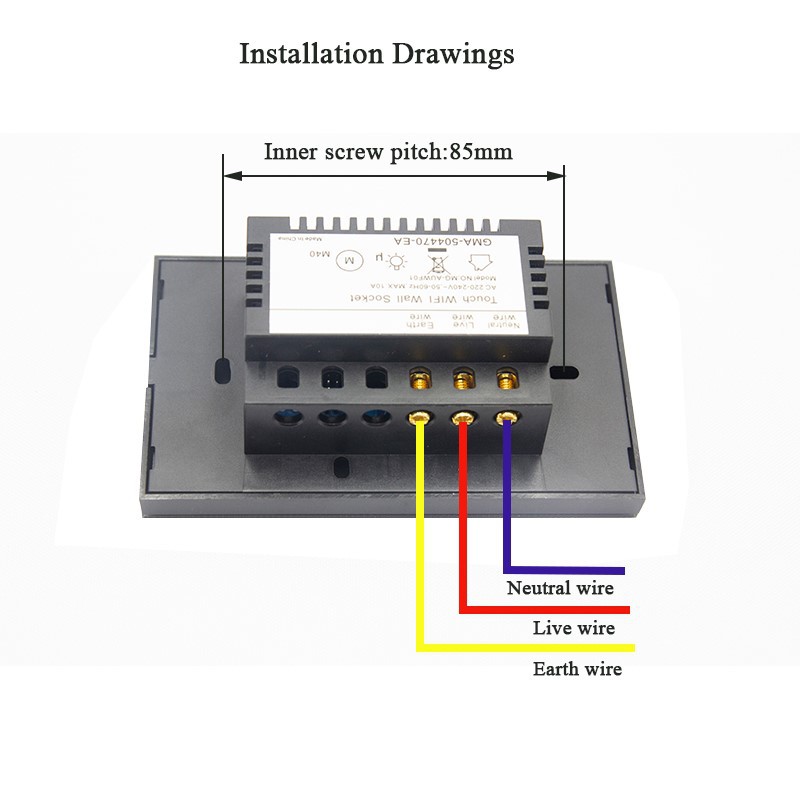

Panel Mount Installation

Supports flush mounting into walls, desktops, or equipment panels; features a compact structure suitable for customized integration solutions.

Wireless Connectivity

Supports Wi-Fi (2.4 GHz) or Zigbee protocols, offering a stable connection suitable for various smart system architectures.

Modular Integrated Design

It can be combined with modules such as USB charging ports and lighting switches to create a multifunctional smart panel.

High-Quality Materials and Durability

Constructed with a flame-retardant housing and high-quality copper components, it offers excellent heat resistance and a long service life.

Applications

Smart Home Systems
Widely applied to home walls or tabletops to enable the intelligent control and energy-saving management of lighting fixtures and home appliances.
Smart Office Spaces
Used for desktop power outlets or conference room panels to enable centralized device control and power management.
Hotels and Apartments
Integrated into the guest room control system, it provides intelligent power control, enhancing both user experience and energy efficiency.
Commercial Spaces and Retail Environments
Applicable to venues such as shopping malls and showrooms, enabling remote device control and scheduled management.
Industrial Equipment and Control Panels
Integrated into industrial equipment and electrical control cabinets to enable remote power monitoring and security management.
Export Projects to Israel
Applicable to smart electrical projects destined for Israel, meeting local standards and providing intelligent upgrade solutions.
